OEM Hot Tub Pump Connectors: Thread, Flow, and Size Guide
With over 20 years of export experience, we've seen too many customers run into trouble—wrong pump or connectors leading to tough installs, frequent repairs, even rework. In this article, we'll walk you through real cases and cover pump types, connection choices, OEM tips, and thread standards—everything you need for picking the right spa pump.
How to choose the right spa pump: Circulation vs. Jet Pumps
Spa pumps generally fall into two types:

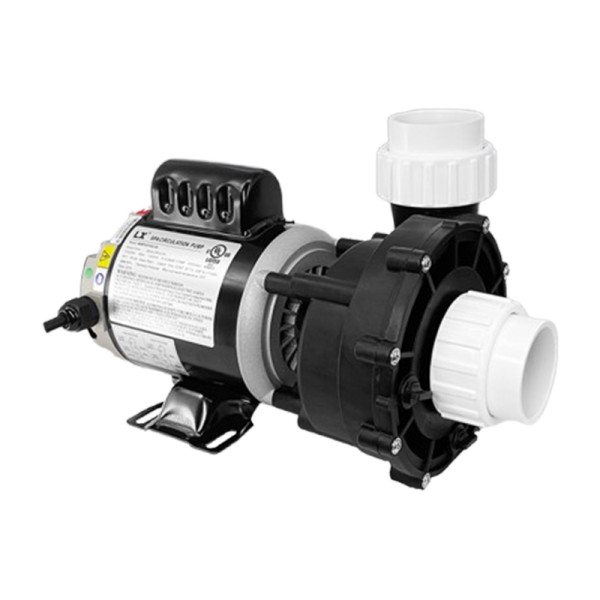

Circulation pumps keep water moving steadily through the heater and filter to maintain clean, warm water. They run for long hours, with moderate flow and low power—usually between 0.25HP and 1HP.
For example, the Hydrorelax WE14 is a great fit for circulation systems.
220V/50HZ Spa Circulation pump
0.25HP(0.18KW)
Max Flow:153L/Min
Max Lift:2.7m
1.5"Pump union
1.5m cable with AMP connector
Features
The flow of pump components using high strength engineering plastics, equipped with special sic mechanical seals;The impeller adopts open structure and the re-flux hole is designed, which ensures the cooling of the mechanical seal and improves its service life.Low noise, high efficiency and long service life;Electric pump outlet direction adjustable.

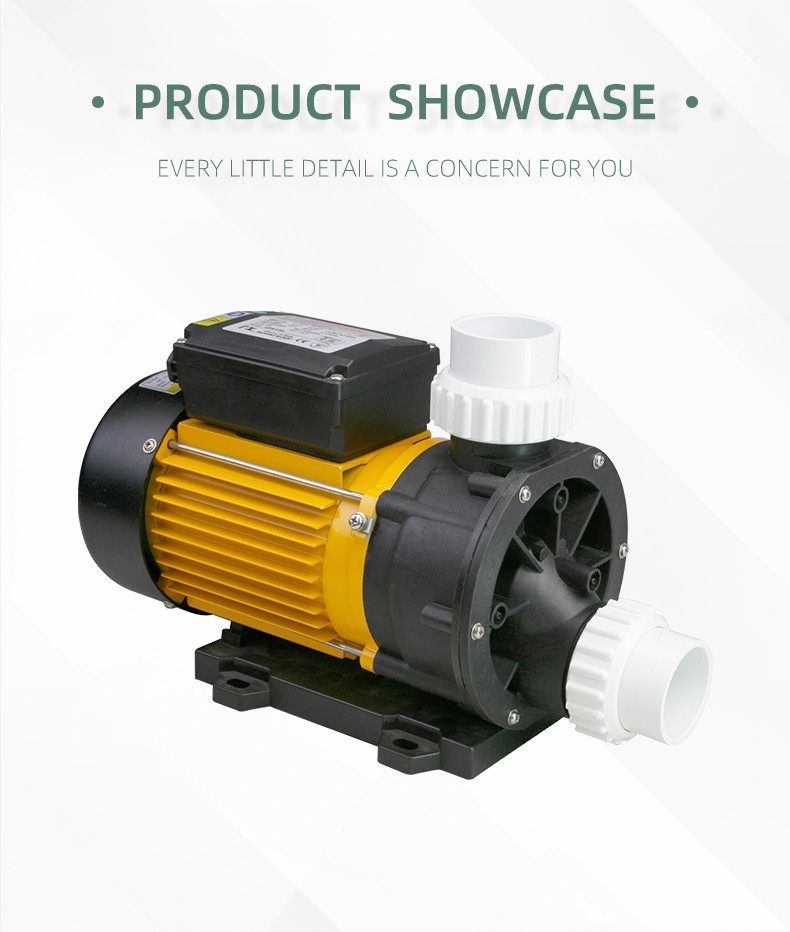

Therapy or jet pumps kick in during massage mode, delivering strong bursts of water through the jets. These are more powerful—typically 1.5HP to 3HP or more—and designed for short, intense runs.
One North American customer once swapped a 1HP circulation pump for a 2HP one, hoping for better filtering. Instead, it caused overheating and filter failure because the water moved too fast. We helped them switch to a 0.75HP pump, and everything ran smoothly again.
Pro tip: Don't just go for the biggest pump. Instead, consider the number of jets, filter pressure limits, and pipe length—everything needs to work together. In some setups, a 2 speed pump might be a better choice for both circulation and massage.
How to choose spa pump connectors: Elbow, Straight, or Union
Many install issues aren't caused by the pump itself—but by using the wrong type of connect parts. Parts connect the pump to your plumbing system, and the right choice can make all the difference in smooth flow, easy installation, and future maintenance.
Straight
The most common type. Ideal when there's plenty of space and the inlet/outlet lines up directly. Simple, cheap, and offers low flow resistance. But if the pump is close to a wall, straight fittings might make pipe routing tricky or force the pipe to bend unnaturally.
Elbow
Best for tight spaces or when the pump sits in a corner. They help redirect the flow—say, from vertical to horizontal—and save space.
Common elbow angles include:
45°: Good for gentle turns, reduces water impact.
60°: A bit sharper than 45°, but still smooth—used for moderate redirection.

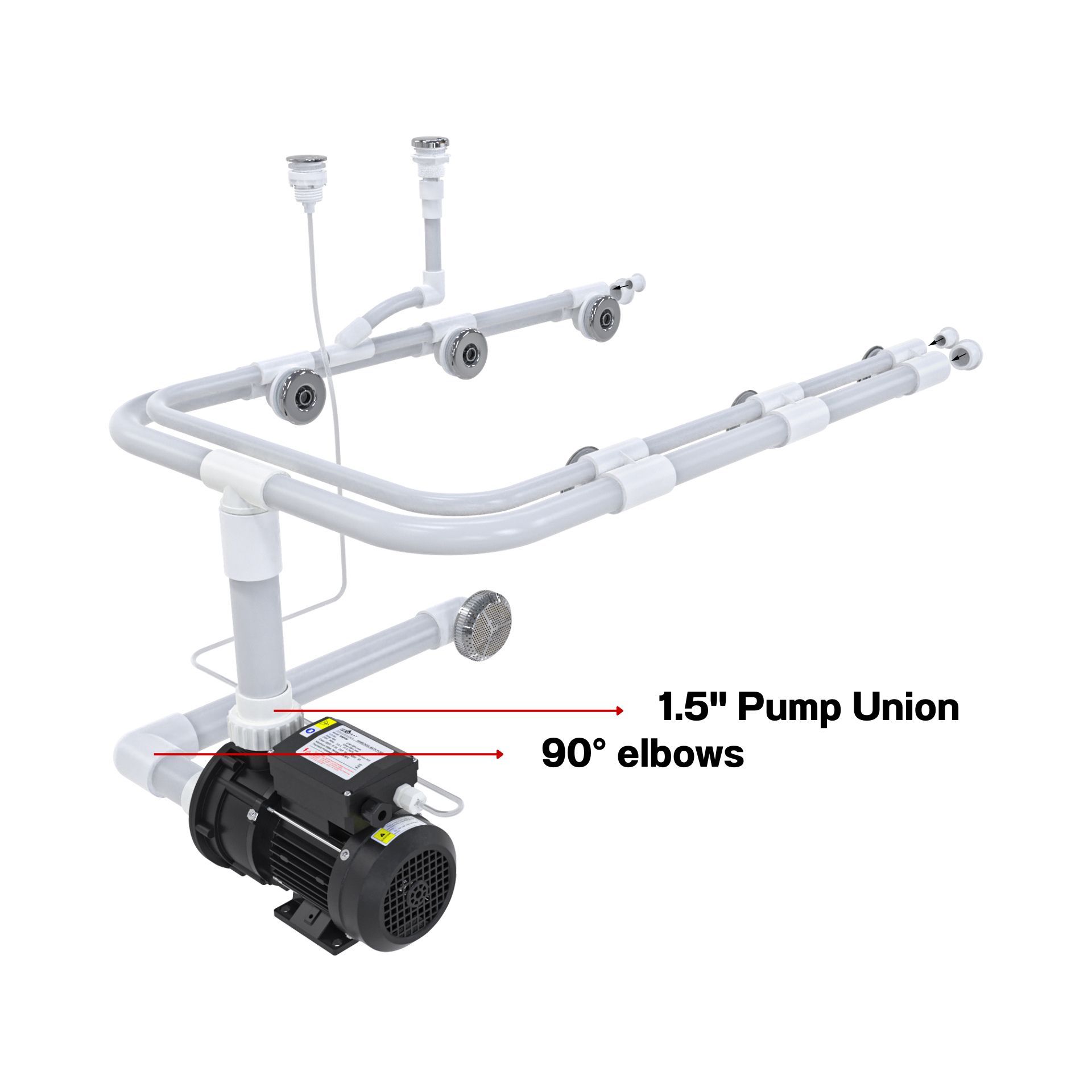

90°: Most common—perfect for compact areas like hot tub corners, letting the pump sit closer to the wall.
135°: For sharp turns, often used when routing water back to the heater or filter.
Spa pump union
These threaded connectors let you easily remove the pump for maintenance. You can attach them in front of either an elbow or straight fitting, making disassembly fast and hassle-free. Ideal for systems that need regular upkeep.
OEM Spa Pumps: Voltage, Labels, Materials, Connector Direction
Standard pumps don't always meet the needs of big spa brands, equipment makers, or project contractors. That's where OEM customization comes in. Common requests include:
Voltage & Frequency
For example, Europe uses 220V / 50Hz, while North America runs on 120V or 240V / 60Hz. Using the wrong spec can cause startup failure—or worse, damage your control board.
Fitting Size & Direction
Pipe sizes can vary slightly between brands, and some systems require specific flow directions—like left-in/right-out vs. right-in/left-out. If fittings don't match the system layout, installation can easily go wrong. Always confirm direction with the manufacturer in advance.
Branding & Labeling
OEM clients often want their logo, serial number, or bar code printed on the pump. Premium brands may also need custom packaging and manuals.
For US and EU markets, labels must clearly show CE, UL, or other required certifications, along with specs like voltage, power, and batch number for customs, inspection, and after-sales.
Pro tip: Share drawings or samples before confirming an OEM order. Double-check electrical specs, plumbing layout, and certifications. Always approve a sample before mass production to reduce risks.

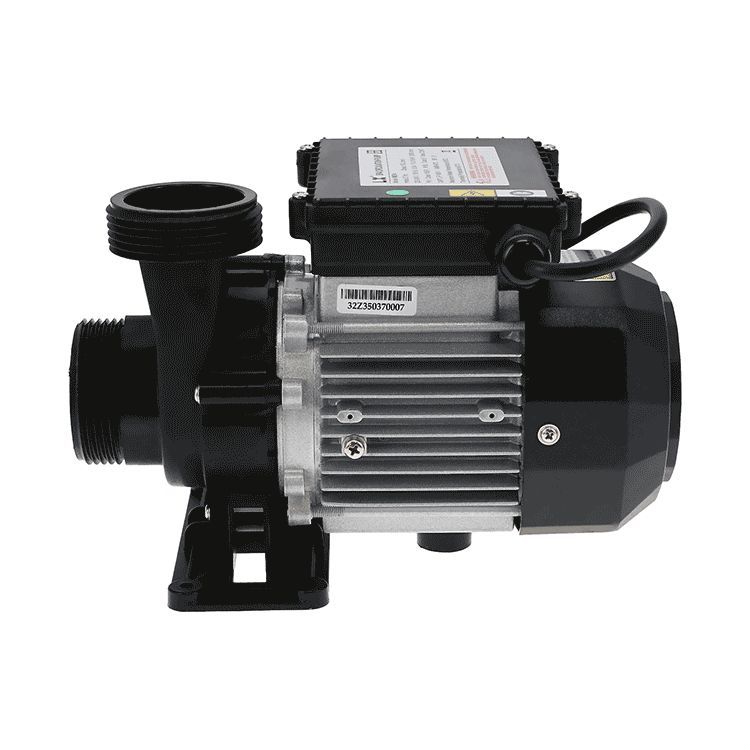

Hot Tub Pump Thread Standards
A common issue during installation isn't the pump itself—but mismatched thread standards.Here are the two most common types:
NPT (National Pipe Thread): Used mainly in the U.S. and Canada. It has a tapered thread that seals by the threads themselves.
BSP (British Standard Pipe): More common in Europe and parts of Asia. Usually used with a gasket for sealing.
We typically match the thread type to your region—imperial, metric, NPT, BSP—whatever you need. If the threads don't match, it won't just be hard to install—it can leak or crack. So this detail really matters.
Not sure which one you need? We can help confirm before shipping or include adapters to make sure installation goes smoothly once your pump arrives.
How to Choose the Right Pump and Components for Your Hot Tub System？
In a spa system, every detail matters—from pump selection and components to thread types and OEM options. Each step affects performance and ease of use.
Whether you're a distributor, brand owner, installer, or just getting started, here's what we recommend:
Take photos of your pump area, pipe layout, and fitting sizes
Confirm your country's voltage and thread standard
Let your supplier know about any special needs—like saltwater, outdoor use, or high temps
With 24 years of experience, we understand how much every choice means to our customers.
Picking the right pump and parts isn't just a technical step—it's the beginning of a trusted partnership.
Need help choosing or have specific requirements? Our tech team is ready to assist with drawings, photo guides, or remote support—just contact us anytime.
