Home / All / Spa Components Wholesale / Whirlpool System / Spa Pumps / SPA Water Pump WP2/6 Series Wholesale | High-Performance Variable Frequency Water Pump for Hot Tub | Affordable Purchase from Factory

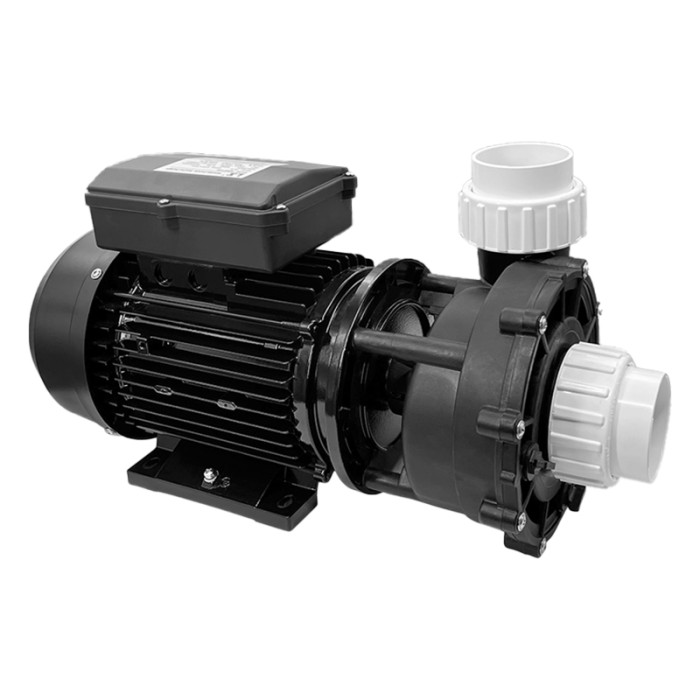

SPA Water Pump WP2/6 Series Wholesale | High-Performance Variable Frequency Water Pump for Hot Tub | Affordable Purchase from Factory
0.2KW/0.25HP~2.2KW/3.0HP
170~730 QMAX(L/MIN)
170~730 QMAX(L/MIN)
| Categories | Spa Pumps |
|---|---|
| Trademark/Brand | Hydrorelax Bathroom industry manufacturer |
| Model | WP200-2/6, WP250-2/6, WP300-2/6 |
| Thermal protector: | with thermal protector( single phase motor) |
| Insulation rating: | F |
| Protection class: | IP55 |
| Medium temperature: | 5~50℃ |
| Ambient temperature: | ≤50℃ |
| Maximum working pressure: | 0.3MPa |
| Update Time | Nov 17,2025 |
Detail Information
SPA Water Pump Parameter
SPA Water Pump Performance Curves
SPA Water Pump Dimension
SPA Water Pump Exploded View
NO. | NAME | |||
1 | Tie-in Nut | |||
2 | Tie | |||
3 | O-Ring | |||
4 | Drainge Plug | |||
5 | O-Ring | |||
6 | Cross Raised Head Screw Assembling | |||
7 | Pump Cover | |||
8 | O-Ring | |||
9 | Impeller Activity Ring | |||
10 | Impeller | |||
11 | Mechanical seal | |||
12 | Pump Casing | |||
13 | Plain Washer | |||
14 | Plastic Spacer | |||
15 | Motor | |||
SPA Water Pump Applications
