Home / All / Spa Components Wholesale / Whirlpool System / Spa Pumps / SPA Water Pump 56WUA(a) Series Wholesale | Durable Powerful Whirlpool Pump for Hot Tub | Bulk Supply from Factory

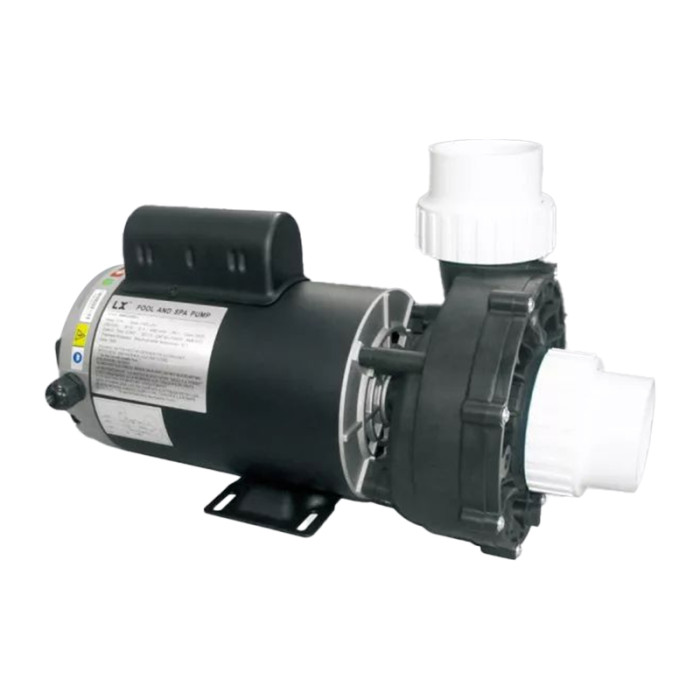

SPA Water Pump 56WUA(a) Series Wholesale | Durable Powerful Whirlpool Pump for Hot Tub | Bulk Supply from Factory
0.75KW/1.0HP~3.75KW/5.0HP
535~1165 QMAX(L/MIN)
535~1165 QMAX(L/MIN)
| Categories | Spa Pumps |
|---|---|
| Trademark/Brand | Hydrorelax Bathroom industry manufacturer |
| Model | 56WUA300a-Ⅰ, 56WUA400a-Ⅰ, 56WUA500a-Ⅰ, 56WUA300a-Ⅱ, 56WUA400a-Ⅱ, 56WUA500a-Ⅱ |
| Thermal protector: | with thermal protector( single phase motor) |
| Insulation rating: | F |
| Medium temperature: | 5~+50℃ |
| Ambient temperature: | ≤+50℃ |
| Maximum working pressure: | 0.3MPa |
| Certification: | UL |
| Update Time | Nov 16,2025 |
Detail Information
SPA Water Pump Introduction
56WUA(a) series pump cover can be rotated at 12:00, 9:00, 3:00, location, which is convenient for pipeline installation.
SPA Water Pump Parameter
SPA Water Pump Performance Curves
SPA Water Pump Dimension
SPA Water Pump Exploded View
NO. | NAME | |||
1 | Tie-in Nut | |||
2 | Tie-in | |||
3 | O-Ring | |||
4 | Drainage Plug | |||
5 | O-Ring | |||
6 | Cross Recessed Pan Head Screw and Washer Assembling | |||
7 | Pump Cover | |||
8 | O-Ring | |||
9 | Activities Rings | |||
10 | Impeller | |||
11 | Mechanical seal | |||
12 | Pump Casing | |||
13 | Motor | |||
SPA Water Pump Applications
