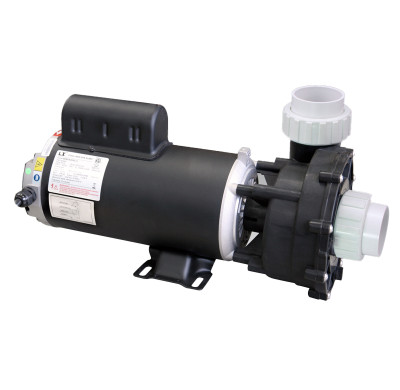

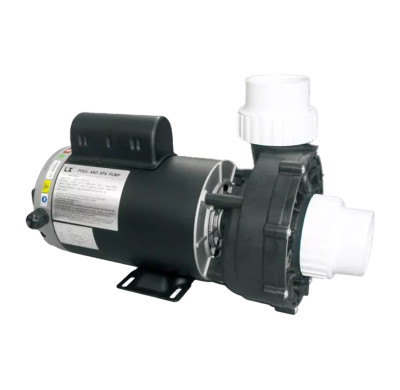

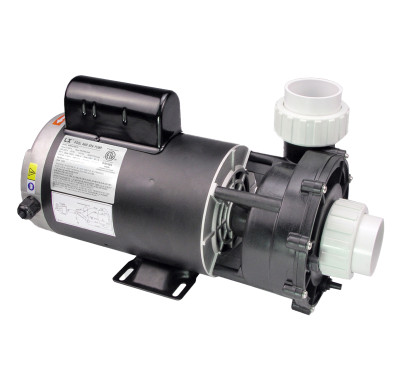

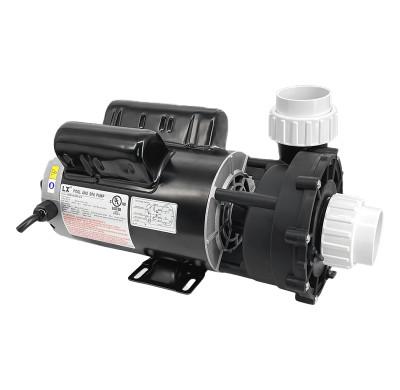

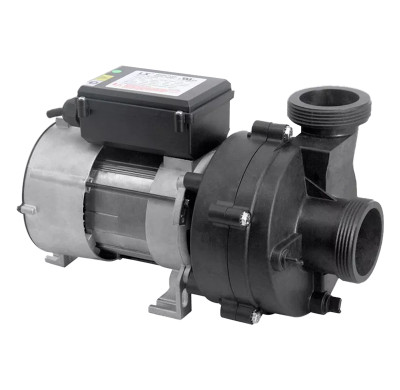

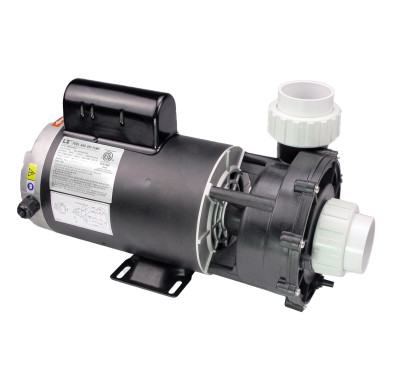

SPA Water Pump WP Series Wholesale | Multi-Angle Hot Tub Water Pump | Manufacturer and Supplier

SPA Water Pump WP Series Wholesale | Multi-Angle Hot Tub Water Pump | Manufacturer and Supplier

SPA Water Pump WP Series Wholesale | Multi-Angle Hot Tub Water Pump | Manufacturer and Supplier
0.35KW/0.625HP~3.0KW/4.0HP
620~780 QMAX(L/MIN)
CategoriesWater Pumps
BrandHydrorelax Bathroom industry manufacturer
ModelWP200-Ⅰ, WP250-Ⅰ, WP300-Ⅰ, WP400-Ⅰ, WP200-Ⅱ, WP250-Ⅱ, WP300-Ⅱ
Thermal protector:with thermal protector( single phase motor)
Insulation rating:F
Protection class:IP55
Medium temperature:5~50℃
Ambient temperature:≤50℃
Maximum working pressure:0.3MPa
Update TimeMay 18,2025
Detail Information

SPA Water Pump Introduction

WP series pump cover can be rotated at 12:00, 9:00, 3:00, 1:30 location, which is convenient for pipeline installation.

SPA Water Pump Parameter

SPA Water Pump Parameter

SPA Water Pump Performance Curves

SPA Water Pump Performance Curve

SPA Water Pump Dimension

SPA Water Pump Dimension
SPA Water Pump Dimension

SPA Water Pump Exploded View

SPA Water Pump Exploded View
NO.
NAME
1
Tie-in Nut
2
Tie
3
O-Ring
4
Hexagon Screw
5
O-Ring
6
Cross Raised Head Screw Assembling
7
Pump Cover
8
O-Ring
9
Impeller
10
 Mechanical seal
11
 Pump Casing
12
Plain Washer
13
Plastic Spacer
14
 Motor

SPA Water Pump Applications

SPA Water Pump Applications
