How to Choose and Match a Spa Jet Manifold: A Complete Buying Guide
This guide will help you choose the right spa jet manifold more easily and make sure it fits your system properly. We'll explain how spa manifolds are made and what you should really pay attention to when selecting one.
We'll also walk through sizing charts and connection details, so you can avoid common mistakes and quickly confirm whether a manifold will fit your existing setup.

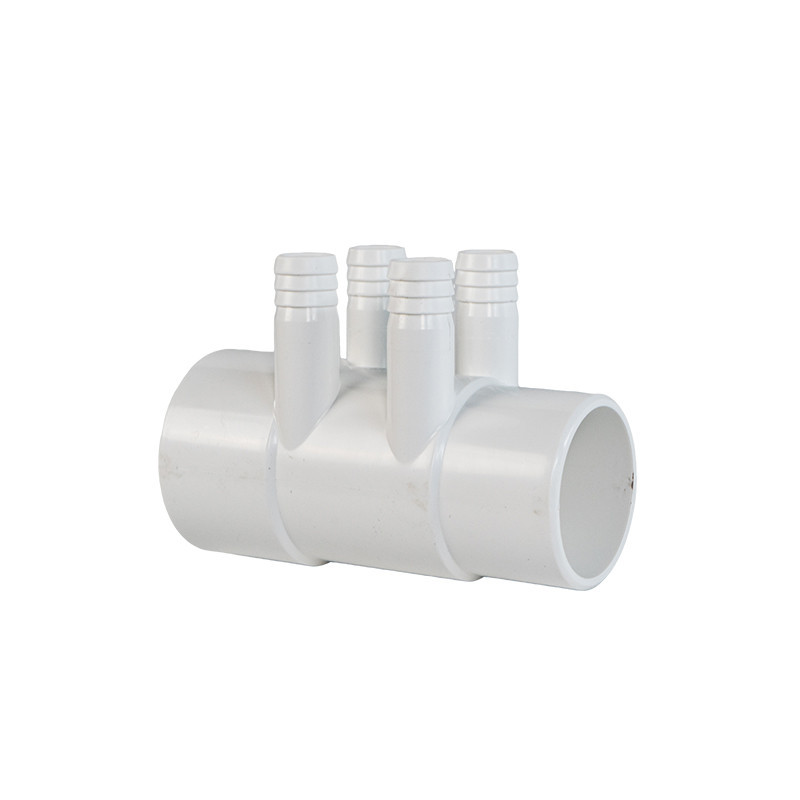

Why Does a Spa Jet Manifold Look Like That?
This design isn't unique to the spa industry. Any system that requires even flow distribution, balanced pressure, and multi-port output follows a similar structure:
1. One main water inlet
2. Multiple outlets with equal or near-equal diameters
3. A relatively symmetrical internal flow path
4. Minimal difference in flow distance to each outlet
The goal is simple:
Make sure every jet receives stable and consistent water pressure.
Without a manifold (if you just use basic T fittings or connect jets in series), the jets closest to the pump will get stronger flow, while the ones at the end will feel weak. Over time, this can lead to pressure fluctuations and uneven air-water mixing.
In short, a manifold is a pressure redistribution device.
It sits between the pump and the jets, managing flow and balancing pressure across the system.
Main Materials Used in Spa Manifolds
Most spa water manifolds on the market today are made from PVC.
The reasons are straightforward:
1. Strong corrosion resistance
2. Handles hot water conditions well
3. Cost effective
4. Easy to weld or glue with standard PVC plumbing
In a hot tub environment with high temperatures and sanitizers, material stability is critical. PVC performs reliably under these conditions, which is why it has become the industry standard.

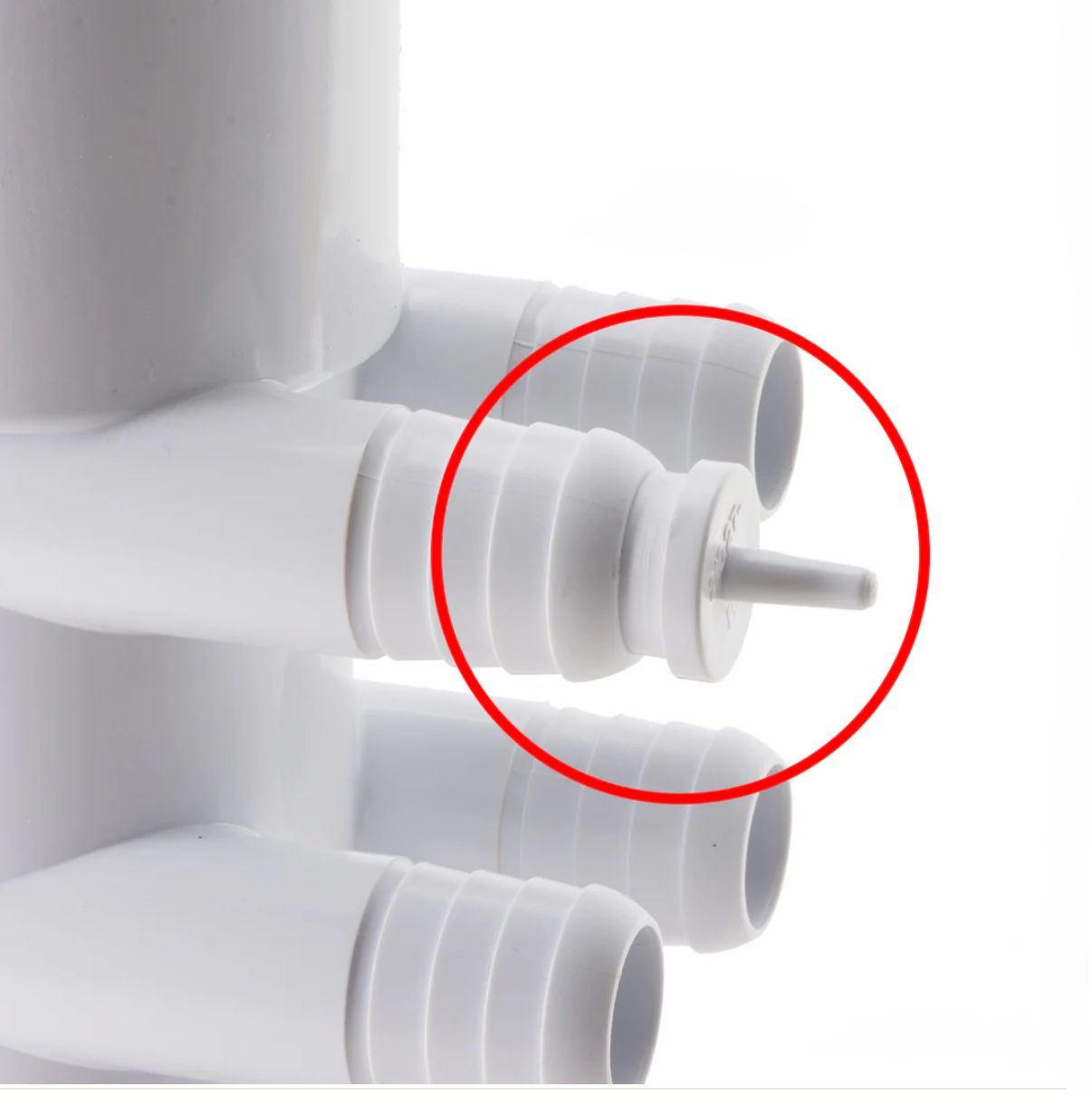

What Is a Barbed Fitting and How Does It Work?
What Is a Barbed Fitting?
A barbed fitting is an outlet design with ridged or barb features on the spigot.
Each outlet has a raised cylindrical spigot, and a flexible hose slides directly over it.
How Is It Secured?
The hose is pushed over the barb.
Then it is secured with a hose clamp.
In some clamp-free systems, a special adhesive is used instead.
Why Is It Widely Used?
This design offers several practical advantages:
Fast installation
Reliable sealing
Easy removal and replacement
Low maintenance cost
In many modern spa systems, clear flexible tubing is used between the manifold and the jet body. This setup makes it easier to:
1. Check for air bubbles or blockages
2. Repair or replace sections quickly
3. Spot potential leaks early
For these reasons, barbed fittings remain a proven solution that balances installation speed with long-term serviceability.
Key Design Considerations for Hot Tub Water Manifolds
In a hot tub system, the manifold is not a standalone part. It works as part of the overall water circulation system.
When designing or sourcing a manifold, you should consider:
1. Pump flow rate and head pressure
2. Number of jets and required flow per jet
3. Differences in plumbing length
4. Whether air injection is used, such as a Venturi system
5. Number of pipe elbows and overall pressure loss
If the pump is powerful but the number of jets is limited, the split ratio will directly affect jet strength.
If there are many jets but the manifold ports are too small, flow restriction can become an issue.
Pipe Size and Connection Type: Where Mistakes Happen Most
When we previously discussed hot tub plumbing standards, we highlighted one key point:
The dimensions of spa piping refer to its nominal diameter, not the actual inside or outside diameter.
In other words, spa pipe sizes are based on nominal sizing. They do not reflect the exact measurement you get with a caliper.
However, in real-world sourcing, there is one critical rule:
All spa pipe matching is based on outside diameter.
You simply need to make sure the pipe outside diameter matches the manifold size.
Common Size Reference (NPS Imperial System)
| Nominal Size | Actual Outside Diameter mm | Typical Application |
| 1/2 inch | 21.34 mm | Low flow branches |
| 3/4 inch | 26.67 mm | Small jet systems |
| 1 inch | 33.40 mm | Medium systems |
1.5 inch | 48.26 mm | Mainstream standard |
2 inch | 60.33 mm | High flow main inlet |
Different standards such as AS NZS 1477 may vary slightly in metric systems, but the logic is the same. Match the outside diameter.
Spa Water Manifold Sourcing Checklist
Before placing an order, confirm the following:
1. Main inlet size
2. Number of outlet ports
3. Whether the outlets use barbed fittings
4. Whether the barb size matches the hose inner diameter
5. Whether the material is pressure rated PVC
6. Whether custom port orientation is required
7. Whether you need a complete kit including hoses, clamps, and adhesive
In many cases, problems are not caused by poor product quality. They happen because of incorrect matching.
Spa Manifold FAQ
1. Why use barbed fittings on spa jet manifolds?
Barbed fittings allow hoses to slide on quickly and lock in place securely. They make installation faster and future maintenance much easier than fully glued connections.
2. Can different manifold sizes be mixed in one system?
It is possible with adapters, but not recommended. Mixing sizes can cause uneven flow and complicate installation.
3. Does the manifold impact jet performance?
Yes. Port count, port size, and internal layout all affect pressure balance. Always match the manifold to your pump specs and total jet count.
4. What does Hydrorelax provide?

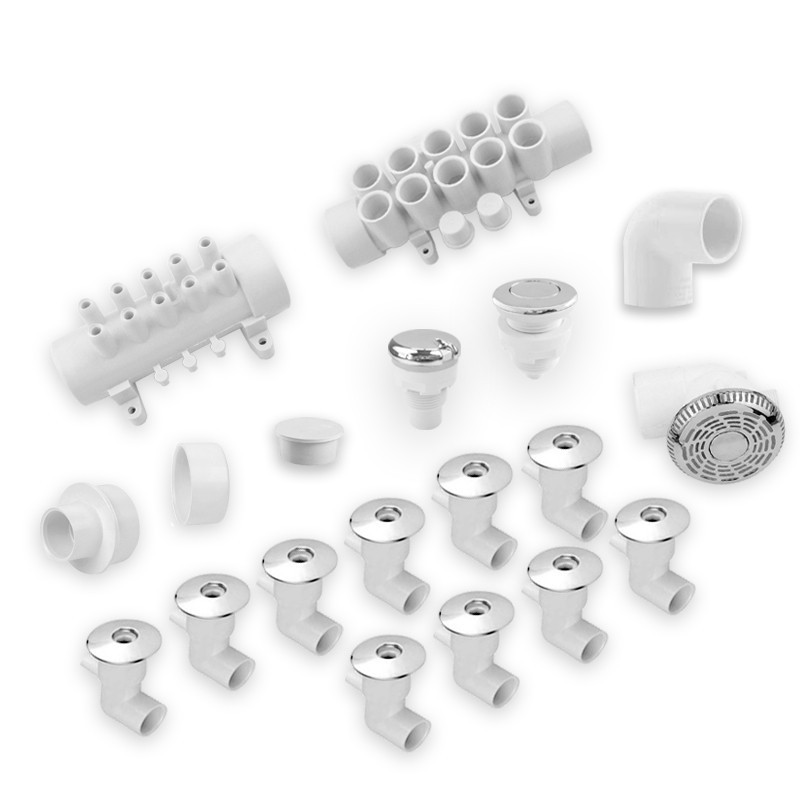

Hydrorelax (Founded in 2000) supplies complete spa system solutions, not just individual parts. We offer pumps, jets, manifolds, hoses, fittings, and control systems with full system matching support.
5. What is the MOQ?
For complete spa system sets, MOQ starts at 20 sets. For standalone manifolds, quantity can be adjusted based on your order plan.
Hydrorelax Insight
In a spa system, a manifold may look like a simple distribution part. In reality, it represents the pressure logic and flow balance of the entire system.
When sourcing, do not focus only on price. Take time to confirm sizing standards, connection types, and overall system compatibility.
If you are evaluating a new spa project or checking whether your current plumbing setup matches, contact the hydrorelax team,we are happy to review the structure with you and go through the details together.
