Home / All / New Products / 2026 Q1 New Products / Drain Fitting G22-1 | Wholesale | 1-1/2" Click-Clack Pop-Up Bathtub Drain with Overflow | Factory Direct Supplier

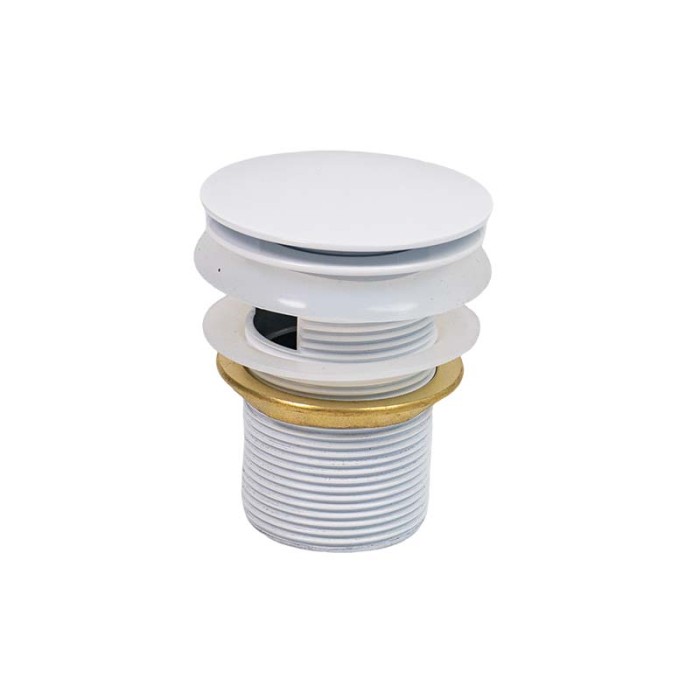

Drain Fitting G22-1 | Wholesale | 1-1/2" Click-Clack Pop-Up Bathtub Drain with Overflow | Factory Direct Supplier
Product Type: Pop-up Bathtub Drain with Overflow / Click-Clack Drainer
Connection Size: Fits standard 1-1/2 inches (1.5") drain pipes
Connection Size: Fits standard 1-1/2 inches (1.5") drain pipes
| Share | |
|---|---|
| Categories | 2026 Q1 New Products |
| Brand | Hydrorelax Bathroom industry manufacturer |
| Model | G22-1 |
| Product Type: | Pop-up Bathtub Drain with Overflow / Click-Clack Drainer |
| Cover Diameter: | 71 mm |
| Height(Open / Close): | 89 mm / 80 mm |
| Connection Size: | Fits standard 1-1/2 inches (1.5") drain pipes |
| Compatibility: | Universal fit for most freestanding bathtubs |
| MOQ: | 100 |
Detail Information
Premium Click-Clack Pop-Up Drain: Features a generous 71mm diameter cover and a highly responsive spring-loaded mechanism; engineered to fit standard 1-1/2 inch plumbing systems with integrated overflow protection.
Universal Freestanding Bathtub Fit: Provides smooth, single-touch operation (89mm open / 80mm closed height) that ensures rapid, clog-free drainage and a leak-proof seal in modern freestanding soaking tubs.
Commercial Plumbing Hardware: Built with heavy-duty, corrosion-resistant materials for reliable daily performance; an essential high-demand replacement part for bathtub manufacturers, hotel builders, and plumbing wholesale suppliers.
Drain Fitting G22-1 Parameter
| Product Type | Pop-up Bathtub Drain with Overflow / Click-Clack Drainer |
| Cover Diameter | 71 mm |
| Height (Pop Open) | 89 mm |
| Height (Pop Closed) | 80 mm |
Connection Size | Fits standard 1-1/2 inches (1.5") drain pipes |
Compatibility | Universal fit for most freestanding bathtubs |
MOQ | 100 |

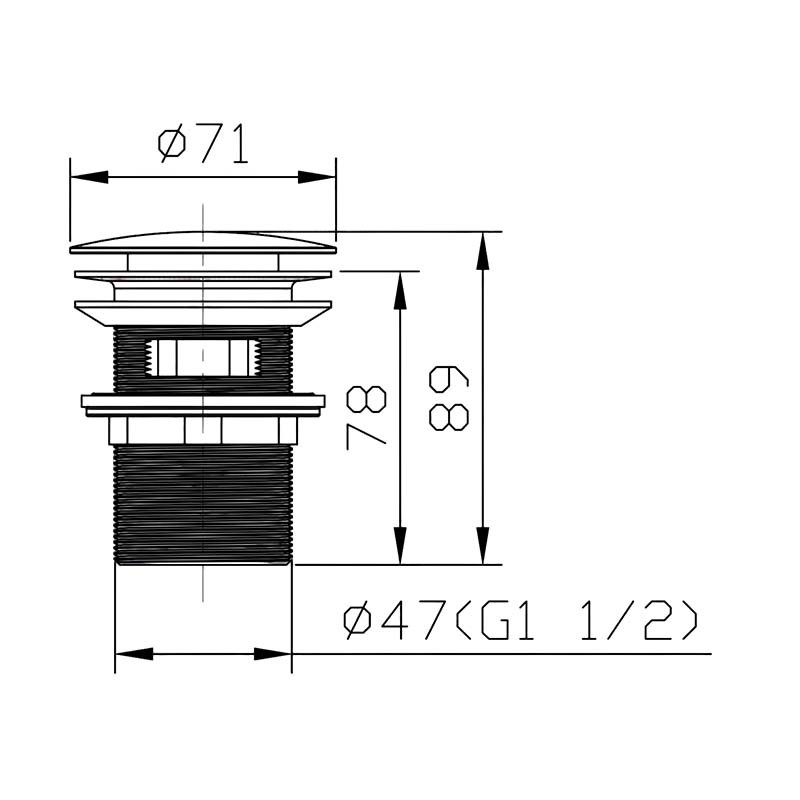

Drain Fitting G22-1 Dimensions

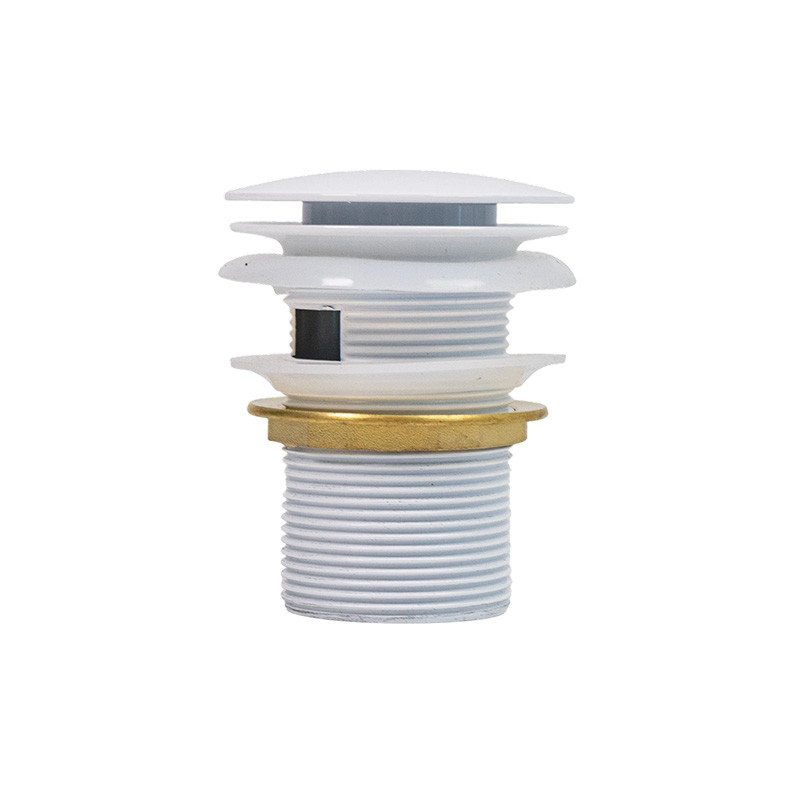

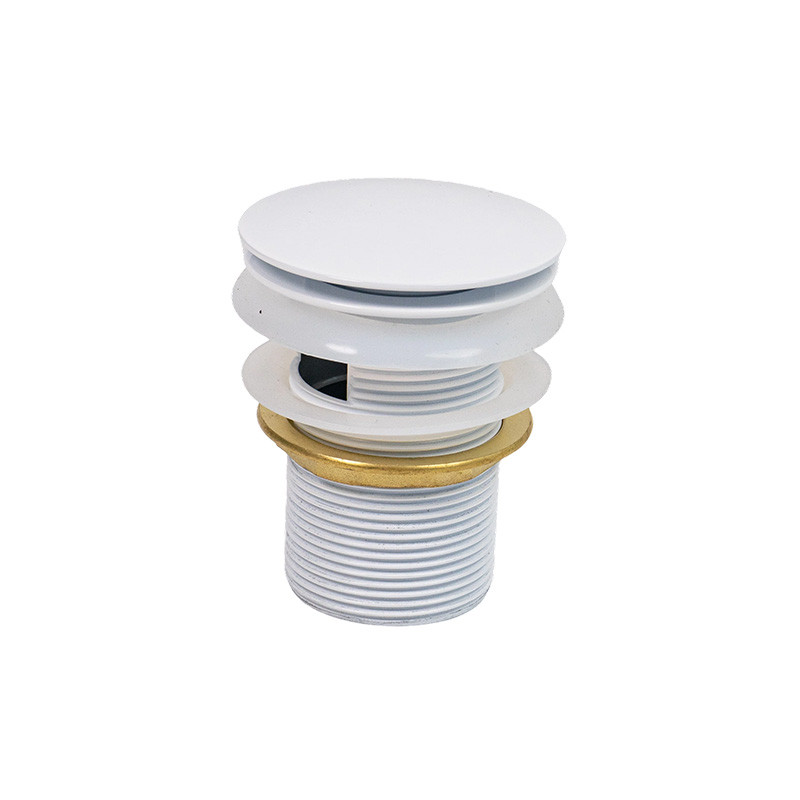

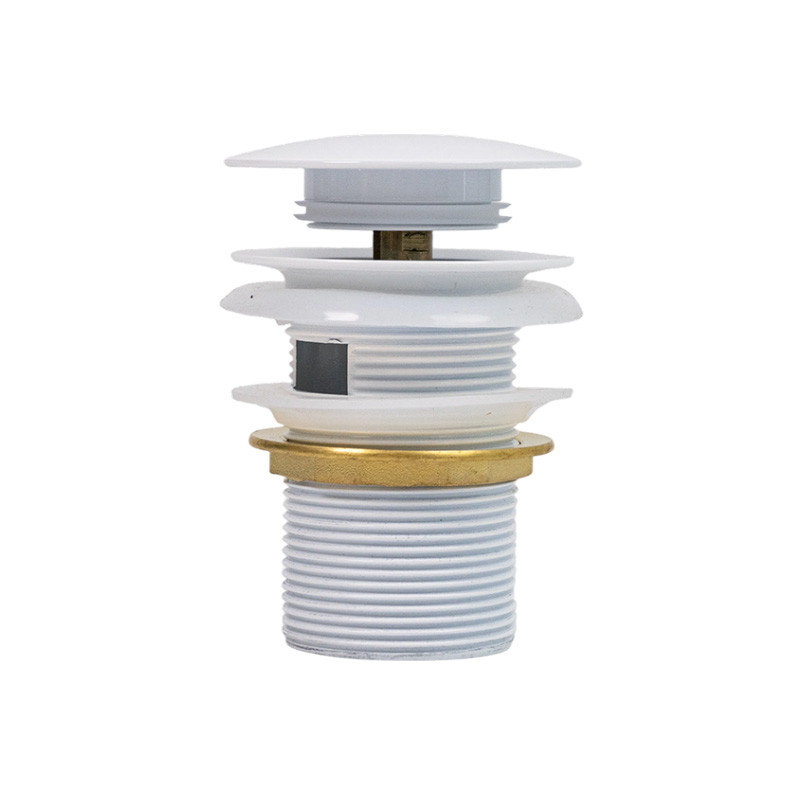

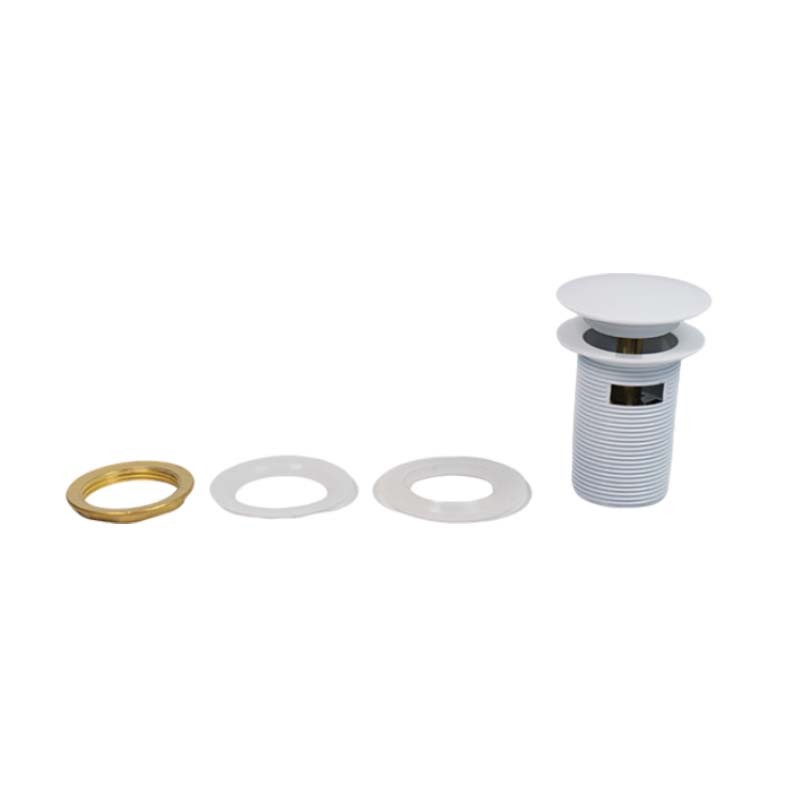

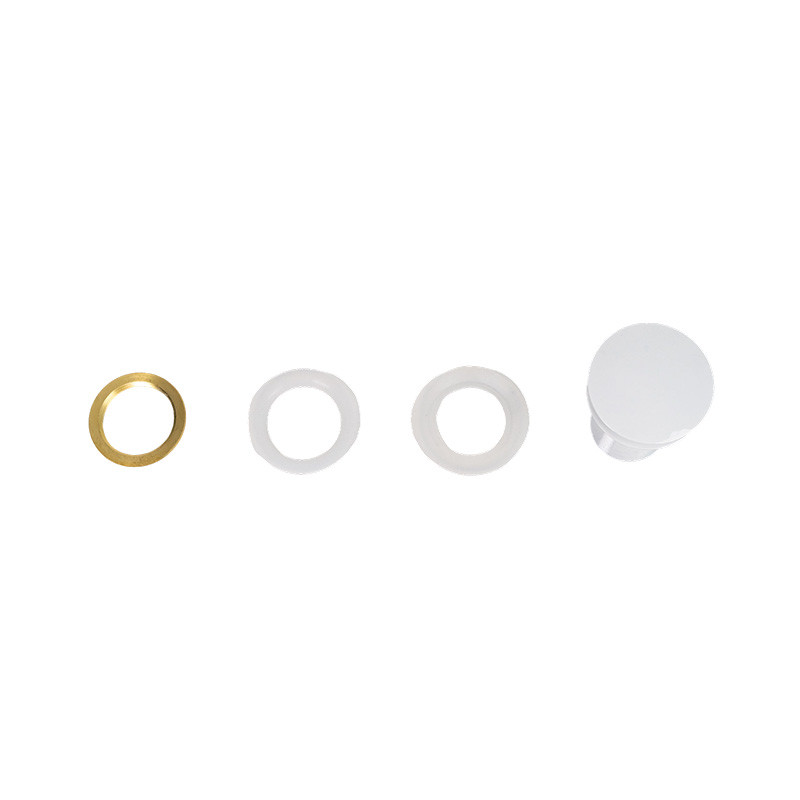

Drain Fitting G22-1 Views
