Home / All / New Products / 2026 Q1 New Products / Spa Water Jet ZS500series | Wholesale | luxury whirlpool bathtub hydrotherapy jet | direct from factory
Spa Water Jet ZS500series | Wholesale | luxury whirlpool bathtub hydrotherapy jet | direct from factory
ZS500：5" Diamond COLLECTION directional Spa jet stainless steel cover 3/8"RB Air x3/4"RB water Spa body Screw-in，
ZS-500R：5"Diamond COLLECTION Rotational Spa jet stainless steel cover 3/8"RB Air x3/4"RB water Spa body Screw-in，
ZS-500R2：5" Diamond COLLECTION Double Rotational Spa jet stainless steel cover 3/8"RB Air x3/4"RB water Spa body Screw-in，
ZS-500RF：5" Diamond COLLECTION Multi Rotational Spa jet stainless steel cover 3/8"RB Air x3/4"RB water Spa body Screw-in
ZS-500DP:5"" Diamond COLLECTION Massage Spa jet stainless steel cover 3/8""RB Air x3/4""RB water Spa body Screw-in
ZS-500E:5" Diamond COLLECTION Vortex Spa jet stainless steel cover 3/8"RB Air x3/4"RB water Spa body Screw-in
ZS-500R：5"Diamond COLLECTION Rotational Spa jet stainless steel cover 3/8"RB Air x3/4"RB water Spa body Screw-in，
ZS-500R2：5" Diamond COLLECTION Double Rotational Spa jet stainless steel cover 3/8"RB Air x3/4"RB water Spa body Screw-in，
ZS-500RF：5" Diamond COLLECTION Multi Rotational Spa jet stainless steel cover 3/8"RB Air x3/4"RB water Spa body Screw-in
ZS-500DP:5"" Diamond COLLECTION Massage Spa jet stainless steel cover 3/8""RB Air x3/4""RB water Spa body Screw-in
ZS-500E:5" Diamond COLLECTION Vortex Spa jet stainless steel cover 3/8"RB Air x3/4"RB water Spa body Screw-in
Detail Information
Multi-Scene Adaptation:
ZS500: Directional air-water mixing jet;
ZS-500R: Single-stage 360° rotational massage;
ZS-500R2: Two-stage independent/synchronous rotational massage;
ZS-500RF: Multi-dimensional rotational massage (multi-angle/multi-speed adjustable)
ZS-500DP:5"" Diamond COLLECTION Massage Spa jet stainless steel cover 3/8""RB Air x3/4""RB water Spa body Screw-in
ZS-500E:5" Diamond COLLECTION Vortex Spa jet stainless steel cover 3/8"RB Air x3/4"RB water Spa body Screw-in
Large Diamond-Patterned Stainless Steel Cover: 5" (approx. 127mm) extra-large nozzle cover made of 304/316 stainless steel.
Screw-In Installation: Screw-in body design ensures stable, leak-free mounting, reducing installation time and maintenance costs.
Spa Water Jet ZS500 Series Series Parameters
Model | ZS500 | ZS-500R | ZS-500R2 | ZS-500RF | ZS-500DP | ZS-500E: |
|
Body Material
|
Stainless Steel |
Stainless Steel |
Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
|
Cover Size
|
5" |
5"
|
5" | 5" | 5" | 5" |
|
Water Connection Size
|
3/4" RB |
3/4" RB
|
3/4" RB | 3/4" RB | 3/4" RB | 3/4" RB |
Air Connection Size | 3/8" RB | 3/8" RB | 3/8" RB | 3/8" RB | 3/8" RB | 3/8" RB |
Feature | Directional | Rational | Double rotational | Multi Rotational | / | / |

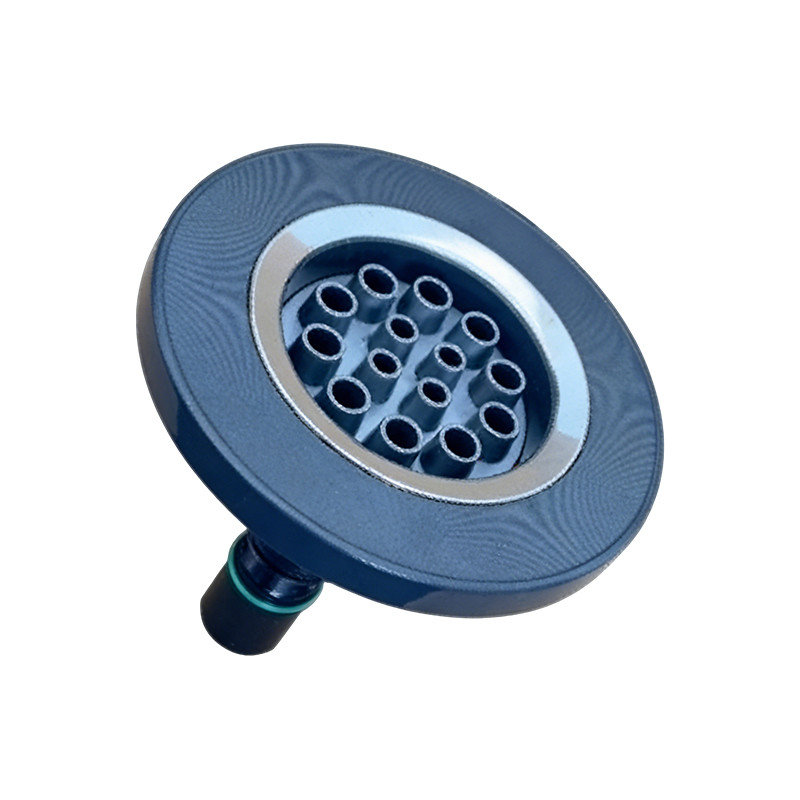

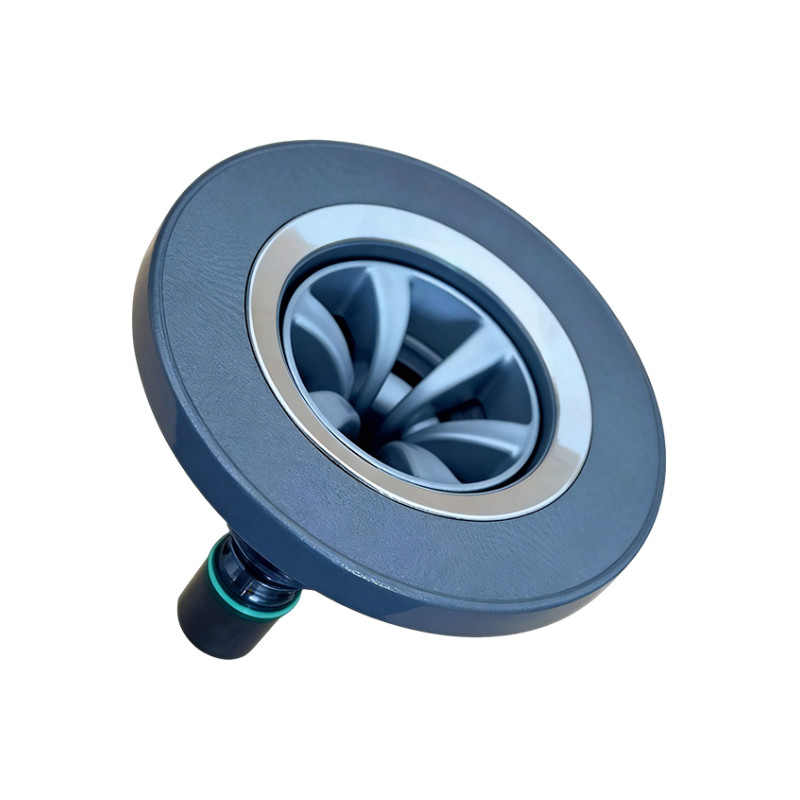

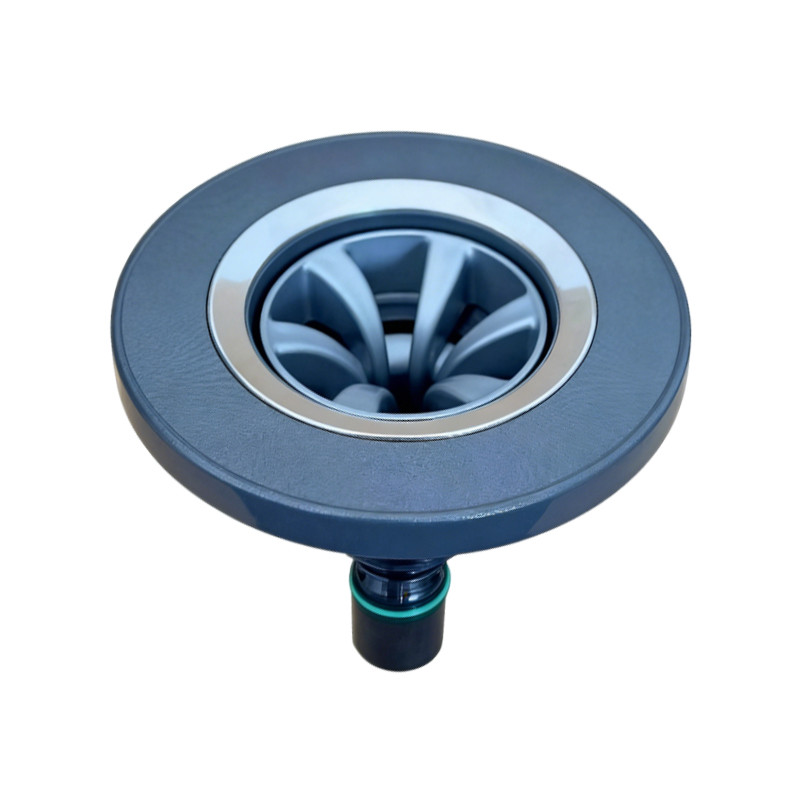

Spa Water Jet ZS500 Series Views
ZS500
ZS-500R
ZS-500R2
ZS-500RF
ZS-500DP
ZS-500E
