Home / All / Spa Components Wholesale / Electric Control System / Spa Control Panel / Spa Control Panel KL8800 | Wholesale |AUX & Drainage Support Advanced Spa Control System Panel | OEM Integration

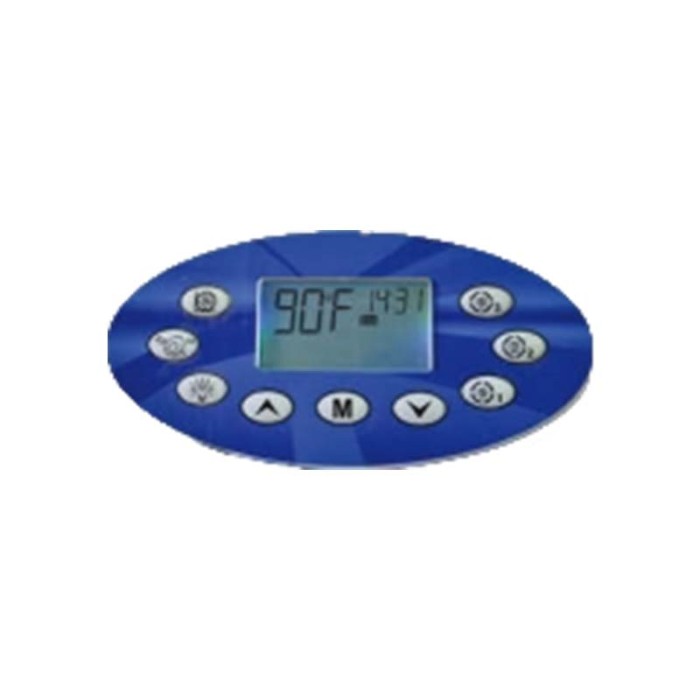

Spa Control Panel KL8800 | Wholesale |AUX & Drainage Support Advanced Spa Control System Panel | OEM Integration
Detail Information
Surfing Pumps: Supports 3–4 × 3HP high-power massage/surf pumps
Circulation Pump: 1 × 1HP circulating pump control
Blower System: 1 × 1HP air blower integration
Heating Module: 1 × 3KW heater compatibility
Ozone System: 8W / 12V AC ozone generator support
Lighting Output: 25W / 12V AC spa lighting control
AUX Output: 700W / 230V auxiliary equipment connection
Auto-Moisturizing: 5W / 12V control function
Drainage Pump: 1KW / 220V drainage system support
OEM Ready: Designed for spa manufacturers, system integrators, and bulk B2B assembly programs
Spa Control Panel KL8800 Introduction
1.water pump:1-3x3HP
2.recycle pump:1x1HP
3.air pump:1x1HP
4.FM radio
5.Led lights:AC12V 20W
6.Ozone:AC12V 8W
7.heater:3KW
Spa Control Panel KL8800 Views
