Home / All / Spa Components Wholesale / Bubble System / Blowers /

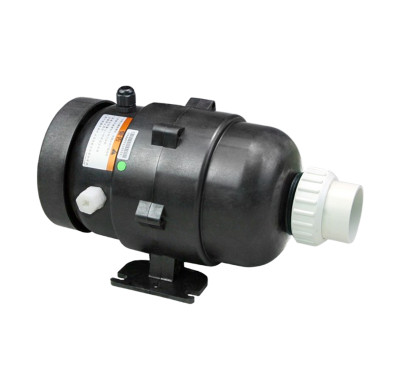

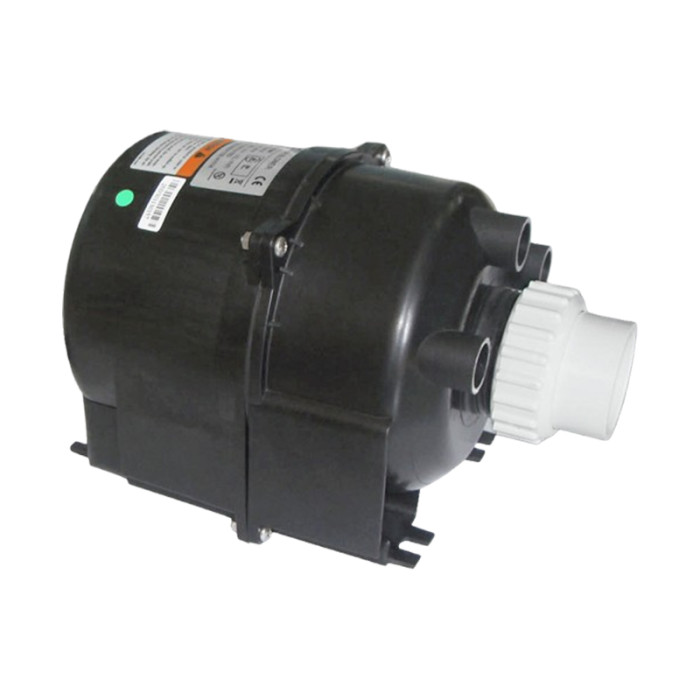

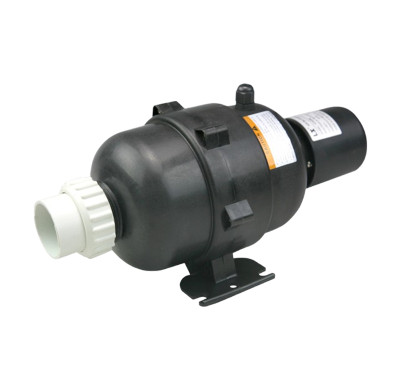

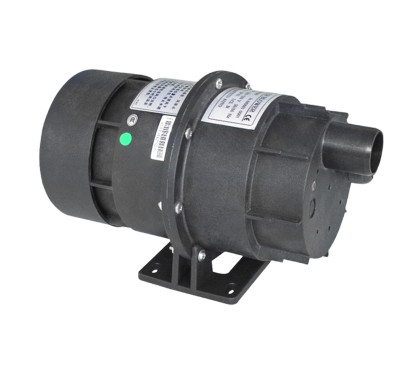

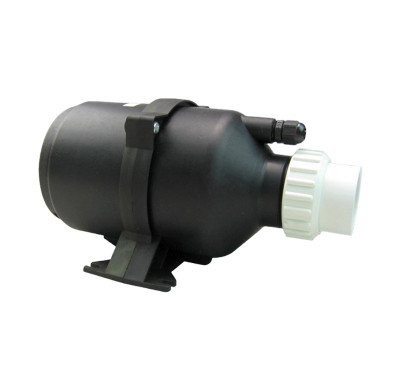

Spa Air Blower APR Series Wholesale | Bathtub and SPA Hydrotherapy Silent Air Blower | Support for Customized Functions
Spa Air Blower APR Series Wholesale | Bathtub and SPA Hydrotherapy Silent Air Blower | Support for Customized Functions
400~900W
1.0~2.0m³/min
1.0~2.0m³/min
| Categories | Blowers |
|---|---|
| Brand | Hydrorelax Bathroom industry manufacturer |
| Model | APR400, APR800, APR900, APR900-Z |
| Thermal protector: | with thermal protector |
| Insulation rating: | F |
| Medium: | dry air |
| Ambient temperature: | ≤40℃ |
| Maximum working pressure: | 0.1MPa |
| Update Time | May 31,2025 |
Detail Information
Spa Air Blower Introduction
Optional air switch, air outlet heater and ultraviolet germicidal light
Spa Air Blower Parameter
Spa Air Blower Dimension
*When D in fig.is thread connection, ф 32, ф 33.5 and ф 48.5 unions are available.
*When D in fig.is direct connection, only ф 48.5 pipe is available.
Spa Air Blower Exploded View
NO. | NAME | |||
1 | Front cover | |||
2 | Cross recessed pan head screws | |||
3 | Thermal protector | |||
4 | Bracket | |||
5 | Ring heater | |||
6 | Sealing pad | |||
7 | Heater block | |||
8 | Fuse | |||
9 | Motor | |||
10 | Fixed clamp | |||
11 | Sponge cushion | |||
12 | Back cover | |||
13 | Hexagonal Nut | |||
14 | Bottom feet | |||
15 | Cross recessed pan head tappig screws | |||
16 | Dir switch | |||
17 | Cable head | |||
18 | Cross recessed pan head screws | |||
Spa Air Blower Installation Diagram
Spa Air Blower Applications
