Home / All / Bathtub Components Wholesale / Whirlpool System / Water Pumps / Bathtub Water Pump WBC Series | Wholesale | Certificated Spring Massage Tub Pump for Hydrotherapy

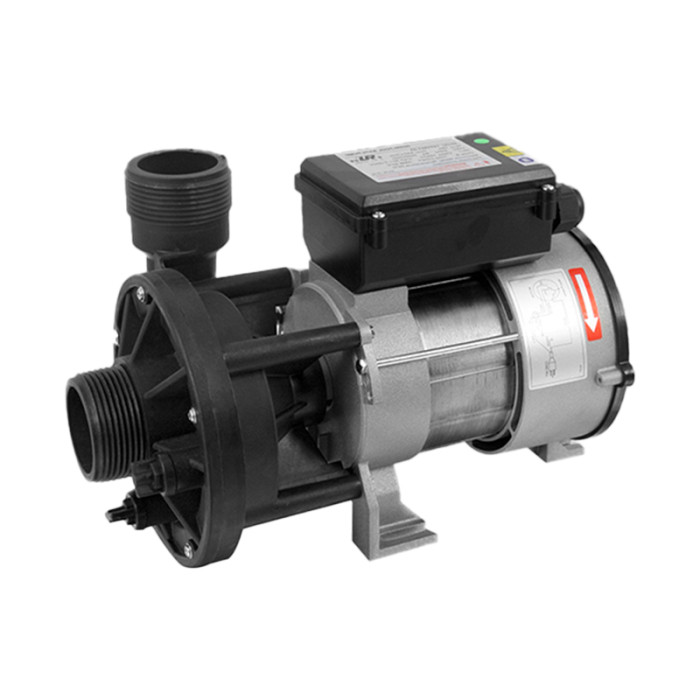

Bathtub Water Pump WBC Series | Wholesale | Certificated Spring Massage Tub Pump for Hydrotherapy
1.1KW/1.5HP
420 QMAX(L/MIN)
420 QMAX(L/MIN)
| Categories | Water Pumps |
|---|---|
| Trademark/Brand | Hydrorelax Bathroom industry manufacturer |
| Model | WBC150 |
| Thermal protector: | with thermal protector( single phase motor) |
| Insulation rating: | F |
| Medium temperature: | 5~50℃ |
| Ambient temperature: | ≤40℃ |
| Maximum working pressure: | 0.3MPa |
| Certification: | UL Recognised Parts |
| Update Time | Nov 7,2025 |
Detail Information
Bathtub Water Pump Parameter
|
Model
|
Qmax(l/min)
|
Hmax(m)
|
V/Hz
|
Power(P1) | (Amp) | G·W(kg) | Packing siaze (mm) | |
kW | HP | |||||||
|
WBC150
|
420
|
16.5
|
110-120/60
|
1.1 | 1.5 | 9.0 | 7.7 | 350*190*270 |
Bathtub Water Pump Performance Curve
Bathtub Water Pump Dimension
Bathtub Water Pump Exploded View
NO. | NAME | |||
1 | Tie-in Nut | |||
2 | Tie-in | |||
3 | O-Ring | |||
4 | Cross Recessed Pan Head Screw and Washer Assemblies | |||
5 | Plug | |||
6 | O-Ring | |||
7 | Pump Cover | |||
8 | O-Ring | |||
9 | Activity Ring | |||
10 | Impeller | |||
11 | Mechanical seal | |||
12 | Pump Casing | |||
13 | Motor | |||
Bathtub Water Pump Applications
