Home / All / Bathtub Components Wholesale / Whirlpool System / Water Pumps /

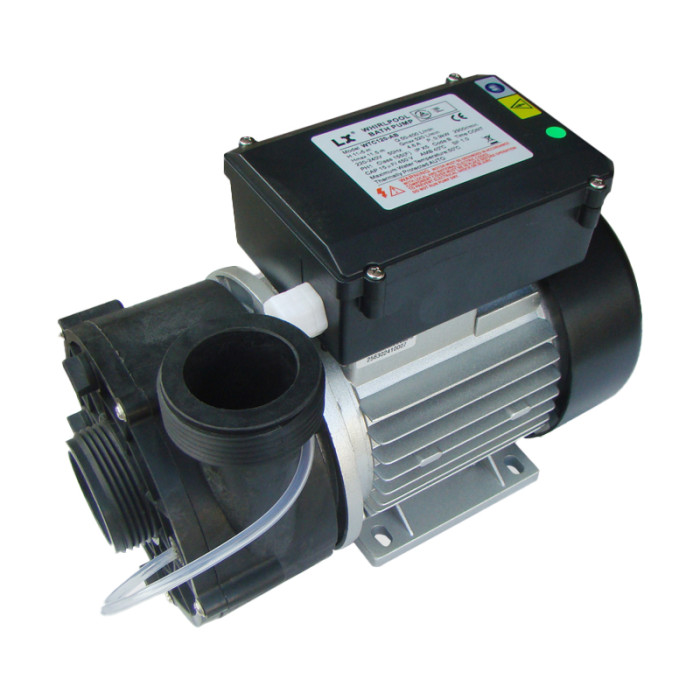

Bathtub Water Pump WTC Series | Certified High-flow and High-power Whirlpool Water Pump for Massage Bathtubs | Top Manufacturer and Supplier
Bathtub Water Pump WTC Series | Certified High-flow and High-power Whirlpool Water Pump for Massage Bathtubs | Top Manufacturer and Supplier
0.75KW/1.0HP~1.5KW/2.0HP
460~620 QMAX(L/MIN)
460~620 QMAX(L/MIN)
| Categories | Water Pumps |
|---|---|
| Brand | Hydrorelax Bathroom industry manufacturer |
| Model | WTC100, WTC120, WTC150, WTC200 |
| Thermal protector: | with thermal protector (single phase motor) |
| Insulation rating: | F |
| Protection class: | IP55 |
| Medium temperature: | 5~50℃ |
| Ambient temperature: | ≤50℃ |
| Maximum working pressure: | 0.3MPa |
| Certification: | CE ; TUV |
| Update Time | May 13,2025 |
Detail Information
Bathtub Water Pump Parameter
Bathtub Water Pump Performance Curves
Bathtub Water Pump Dimension
A variety of water inlet and outlet combinations are available.
Bathtub Water Pump Exploded View
NO. | NAME | |||
1 | Tie-in Nut | |||
2 | Tie | |||
3 | O-Ring | |||
4 | Cross Recessed Pan Head Screw and Washer Assembling | |||
5 | Pump Cover | |||
6 | Impeller | |||
7 | Mechanical seal | |||
8 | O-Ring | |||
9 | Pump Casing | |||
10 | Motor | |||
Bathtub Water Pump Applications
