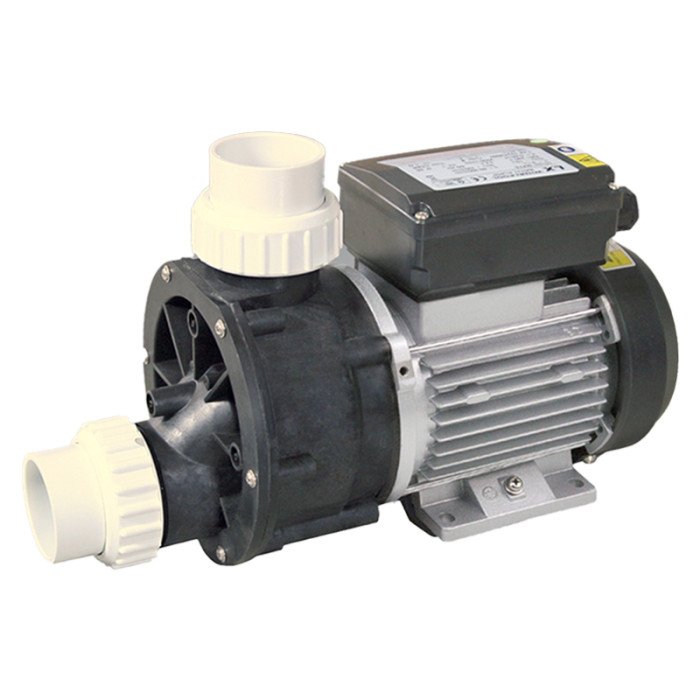

Bathtub Water Pump WM Series Wholesale | Strong Water Inlet Circulation Pump | Affordable B2B Sourcing

Bathtub Water Pump WM Series Wholesale | Strong Water Inlet Circulation Pump | Affordable B2B Sourcing

Bathtub Water Pump WM Series Wholesale | Strong Water Inlet Circulation Pump | Affordable B2B Sourcing
0.37KW/0.5HP~0.9KW/1.2HP
230~350 QMAX(L/MIN)
CategoriesWater Pumps
BrandHydrorelax Bathroom industry manufacturer
ModelWM50, WM75, WM100, WM120
Thermal protector:with thermal protector (single phase motor)
Insulation rating:F
Protection class:IP55
Medium temperature:5~50℃
Ambient temperature:≤50℃
Maximum working pressure:≤50℃
Certification:CE : TUV
Update TimeMay 13,2025
Detail Information

Bathtub Water Pump Parameter

Bathtub Water Pump Parameter

Bathtub Water Pump Performance Curves

Bathtub Water Pump Performance Curves

Bathtub Water Pump Dimension

Bathtub Water Pump Dimension

Bathtub Water Pump Exploded View

Bathtub Water Pump Exploded View
NO.
NAME
1
Tie-in Nut
2
Tie
3
O-Ring
4
Cross Raised Pan Head Tapping Screw
5
 Pump Cover
6
O-Ring
7
Impeller
8
Mechanical seal
9
 Pump Casing
10
 Motor

Bathtub Water Pump Applications

Bathtub Water Pump Applications
