Home / All / Bathtub Components Wholesale / Whirlpool System / Water Pumps / Bathtub Water Pump TDA Series Wholesale | High Performance Whirlpool Bathtub Water Pumps of Various Specifications | Available at Wholesale

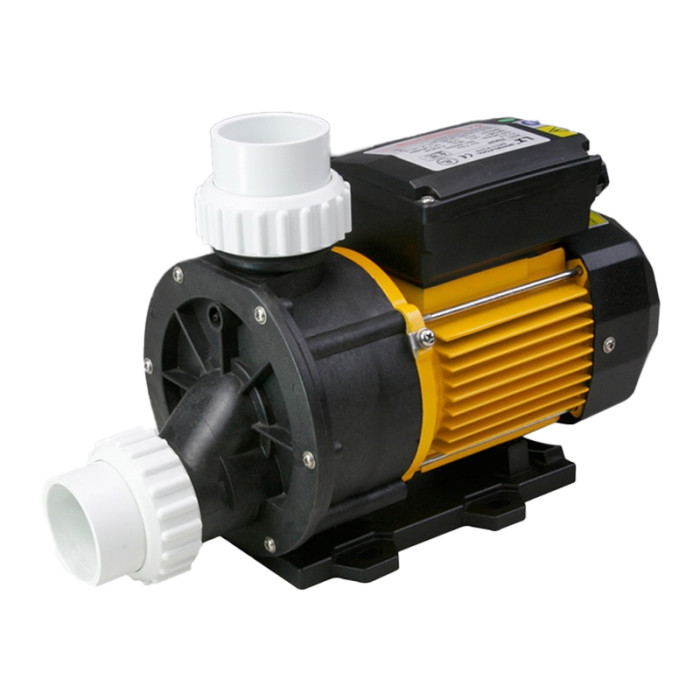

Bathtub Water Pump TDA Series Wholesale | High Performance Whirlpool Bathtub Water Pumps of Various Specifications | Available at Wholesale
0.25KW/0.35HP~1.5KW/2.0HP
150~450 QMAX(L/MIN)
150~450 QMAX(L/MIN)
| Categories | Water Pumps |
|---|---|
| Trademark/Brand | Hydrorelax Bathroom industry manufacturer |
| Model | TDA35, TDA50, TDA75, TDA100, TDA120, TDA150, TDA200 |
| Thermal protector: | with Thermal protecto (single phase motor) |
| Insulation rating: | F |
| Protection class: | IP55 |
| Medium temperature: | 5~50℃ |
| Ambient temperature: | ≤50℃ |
| Maximum working pressure: | 0.3MPa |
| Certification: | CE ; TUV ; SAA ; UL |
| Update Time | Nov 11,2025 |
Detail Information
Bathtub Water Pump Parameter
Bathtub Water Pump Performance Curve
Bathtub Water Pump Dimension
Bathtub Water Pump Exploded View
NO. | NAME | |||
1 | Tie-in Nut | |||
2 | Tie | |||
3 | O-Ring | |||
4 | Cross Raised Head Screw Assembling | |||
5 | Pump Cover | |||
6 | O-Ring | |||
7 | Impeller | |||
8 | Mechanical seal | |||
9 | Pump Casing | |||
10 | Motor | |||
Bathtub Water Pump Applications
