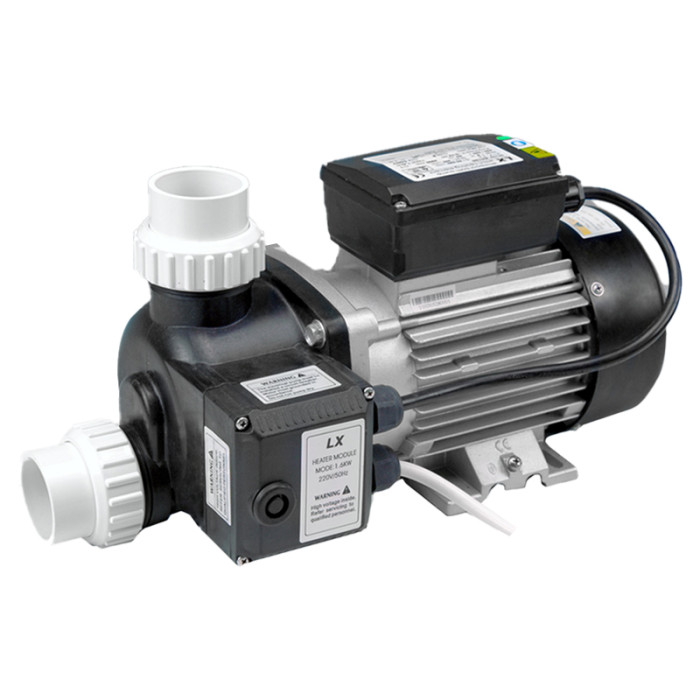

Bathtub Water Pump EH Series Wholesale | Certified High-Efficiency Energy-Saving Circulation Water Pump | Top Manufacturer from China

Bathtub Water Pump EH Series Wholesale | Certified High-Efficiency Energy-Saving Circulation Water Pump | Top Manufacturer from China

Bathtub Water Pump EH Series Wholesale | Certified High-Efficiency Energy-Saving Circulation Water Pump  | Top Manufacturer from China
0.55KW/0.75HP~1.1KW/1.5HP
280~380QMAX(L/MIN)
CategoriesWater Pumps
BrandHydrorelax Bathroom industry manufacturer
ModelEH75, EH100, EH120, EH150
Thermal protector:with thermal protector (single phase motor)
Insulation rating:F
Protection class:IP55
Medium temperature:5~50℃
Ambient temperature:≤50℃
Maximum working pressure:≤50℃
Electric heating tube power:1000W, 1500W, 2000W, 2500W, 3000W
Certification:CE ; TUV ; SAA
Update TimeMay 13,2025
Detail Information

Bathtub Water Pump Parameter

Bathtub Water Pump Parameter

Bathtub Water Pump Performance Curves

Bathtub Water Pump Performance Curves

Bathtub Water Pump Dimension

Bathtub Water Pump Dimension

Bathtub Water Pump Exploded View

Bathtub Water Pump Exploded View
NO.
NAME
1
Tie-in Nut
2
Tie
3
O-Ring
4
Hexagon Screw
5
 Flat Spacer
6
 Pump Casing
7
Impeller
8
O-Ring
9
Mechanical seal
10
Pump Cover
11
 Motor
12
Heating Element
13
Plastic Spacer
14
O-Ring
15
Terminal Box

Bathtub Water Pump Applications

Bathtub Water Pump Applications
