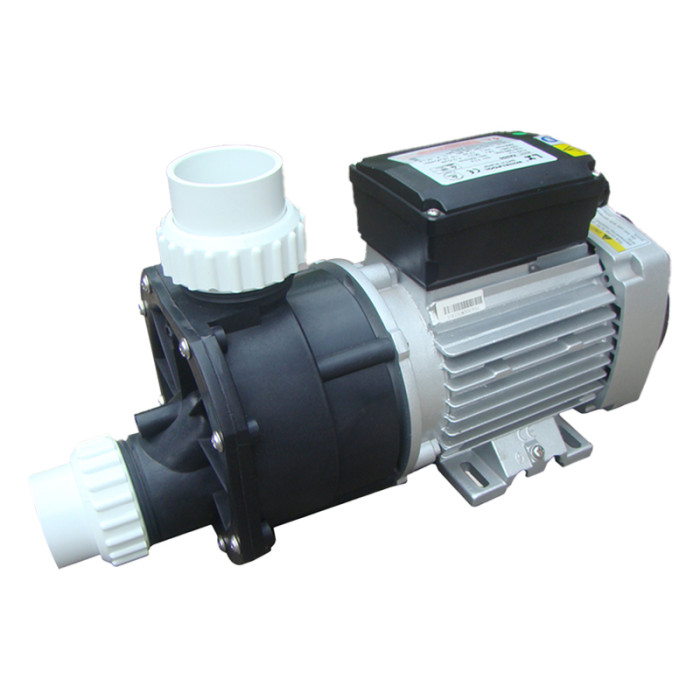

Bathtub Water Pump EA Series Wholesale | High Performance Water Circulation Pump for Massage Bathtub | Wholesale Available in Multiple Specifications
Bathtub Water Pump EA Series Wholesale | High Performance Water Circulation Pump for Massage Bathtub | Wholesale Available in Multiple Specifications
0.55KW/0.75HP~1.1KW/1.5HP
280~360QMAX(L/MIN)
280~360QMAX(L/MIN)
| Categories | Water Pumps |
|---|---|
| Brand | Hydrorelax Bathroom industry manufacturer |
| Model | EA320,EA350,EA390,EA450 |
| Thermal protector: | with thermal protector (single phase motor) |
| Insulation Rating: | F |
| Protection class: | IP55 |
| Medium temperature: | 5~50℃ |
| Ambient Temperature: | ≤50℃ |
| Maximum working pressure: | 0.3MPa |
| Certification: | CE ; TUV |
| Update Time | May 13,2025 |
Detail Information
Bathtub Water Pump Parameter
Model | Qmax(I/min) |
Hmax(m)
|
V/Hz | Power(P1) | (Amps) |
Fitting size(mm)
|
(Kg)
|
Packin size(mm)
|
Qty/20' | |||
kW | HP |
|||||||||||
EA320 | 280 |
11
|
220-240/50 | 0.55 | 0.75 | 3.2 |
48.5or50
|
9.0
|
420×180×255
|
1504 | ||
EA350 | 320 |
11
|
220-240/50 | 0.75 | 1.0 | 3.8 |
48.5or50
|
9.5
|
420×180×255
|
1504 | ||
EA390 | 335 | 15 | 220-240/50 | 0.9 | 1.2 | 4.6 | 48.5or50 | 9.8 | 420×180×255 | 1504 | ||
EA450 | 360 | 15 | 220-240/50 | 1.1 | 1.5 | 5.8 | 48.5or50 | 10.5 | 380*180*250 | 1504 | ||
Bathtub Water Pump Performance Curves
Bathtub Water Pump Dimension
Bathtub Water Pump Exploded View
NO. | Name | |||||||||
1 | Tie-in Nut | |||||||||
2 | Tie | |||||||||
3 | O-Ring | |||||||||
4 | Cross Raised Head Screw Assembling | |||||||||
5 | Pump Cover | |||||||||
6 | O-Ring | |||||||||
7 | Impeller | |||||||||
8 | Mechanical seal | |||||||||
9 | Pump Casing | |||||||||
10 | Screw | |||||||||
11 | Motor | |||||||||
Bathtub Water Pump Applications
