Home / All / Bathtub Components Wholesale / Whirlpool System / Water Pumps /

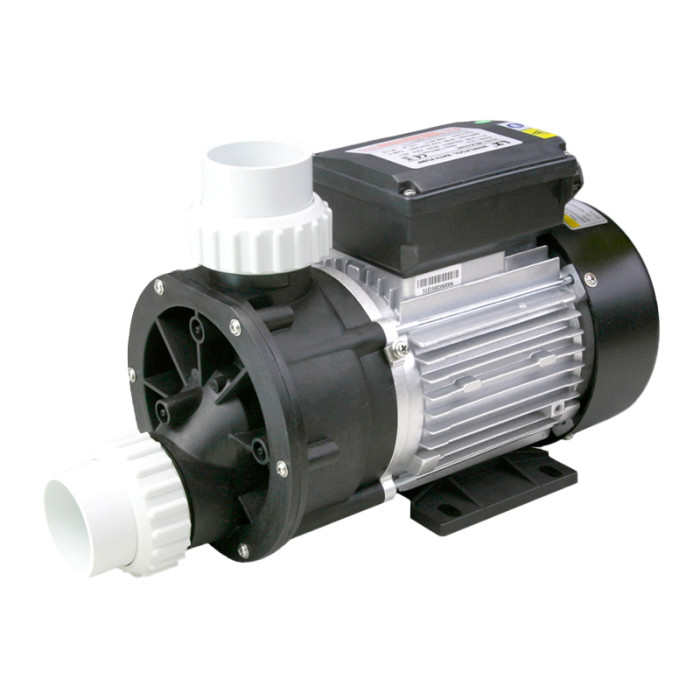

Bathtub Water Pump DH1.0 Wholesale | Whirlpool Water Circulation Pump Perfect for Massage Bathtub
Bathtub Water Pump DH1.0 Wholesale | Whirlpool Water Circulation Pump Perfect for Massage Bathtub
0.55KW/0.75HP~1.1KW/1.5HP
280~360QMAX(L/MIN)
280~360QMAX(L/MIN)
| Categories | Water Pumps |
|---|---|
| Brand | Hydrorelax Bathroom industry manufacturer |
| Model | DH1.0 |
| Thermal protector: | with thermal protector (single phase motor) |
| Insulation rating: | F |
| Protection class: | IP55 |
| Medium temperature: | 5~50℃ |
| Ambient temperature: | ≤50℃ |
| Maximum working pressure: | 0.3MPa |
| Certification: | CE |
| Update Time | May 13,2025 |
Detail Information
Bathtub Water Pump Parameter
|
Model
|
Qmax(l/min)
|
Hmax(m)
|
V/Hz
|
Power(P1) | (Amp) | Fitting size (mm) | G·W(kg) | Packing siaze (mm) | |
kW | HP | ||||||||
|
DH1.0
|
340
|
10.5
|
220-240/50
|
0.75 | 1.0 | 3.8 | 48.5or50 | 8.5 | 380*175*260 |
230V/60Hz, 110V/60Hz, 110v/50Hz models are available on request.
Bathtub Water Pump Performance Curve
Bathtub Water Pump Dimension
Bathtub Water Pump Exploded View
NO. | NAME | |||
1 | Tie-in Nut | |||
2 | Tie | |||
3 | O-Ring | |||
4 | Cross Raised Head Screw Assembling | |||
5 | Pump Cover | |||
6 | O-Ring | |||
7 | Impeller | |||
8 | Mechanical seal | |||
9 | Pump Casing | |||
10 | Motor | |||
Bathtub Water Pump Applications
